Building "off-grid"

- The Bathroom (cont.) -
(click pictures for larger view)

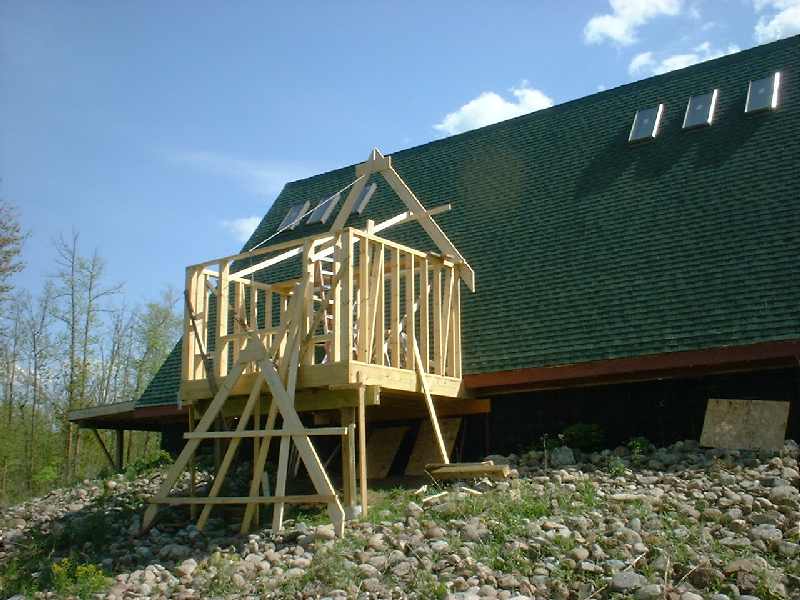

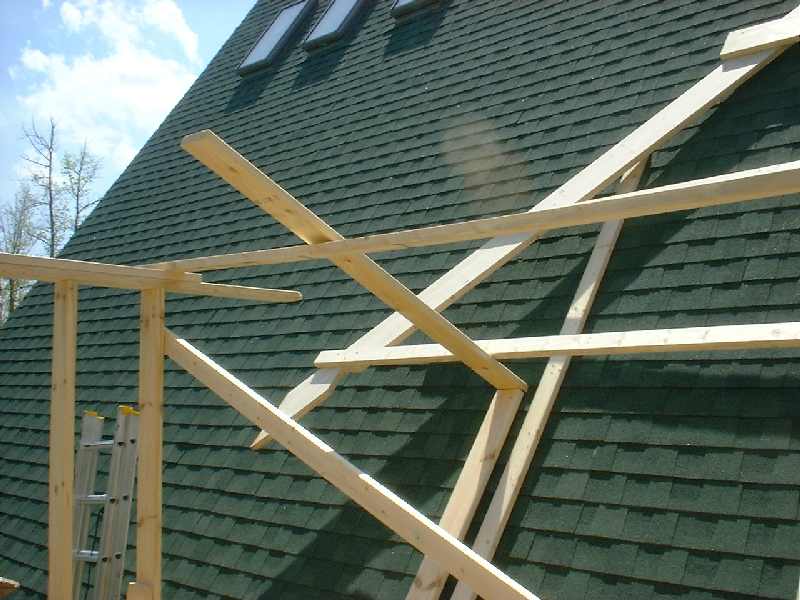

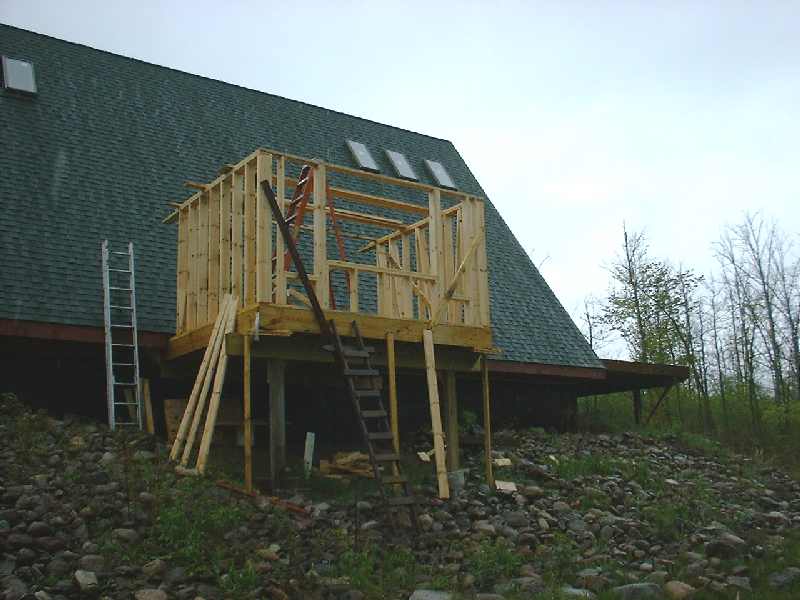

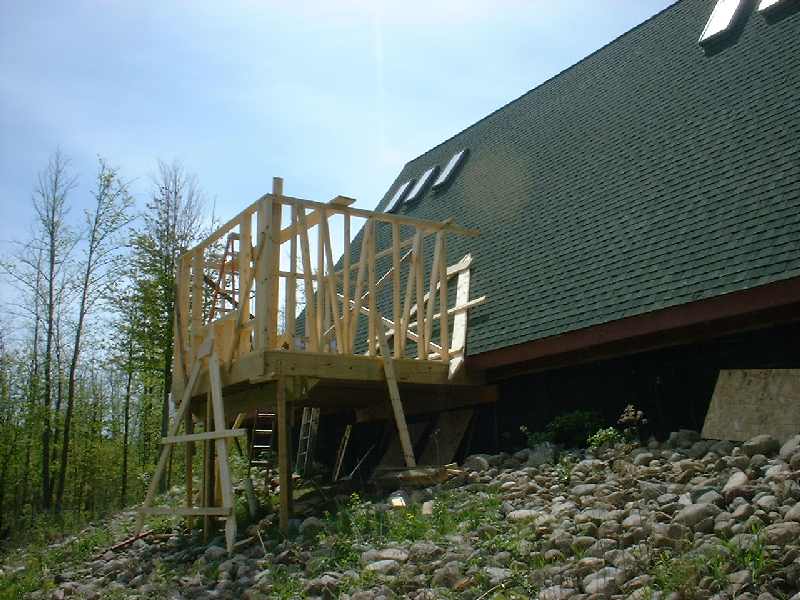

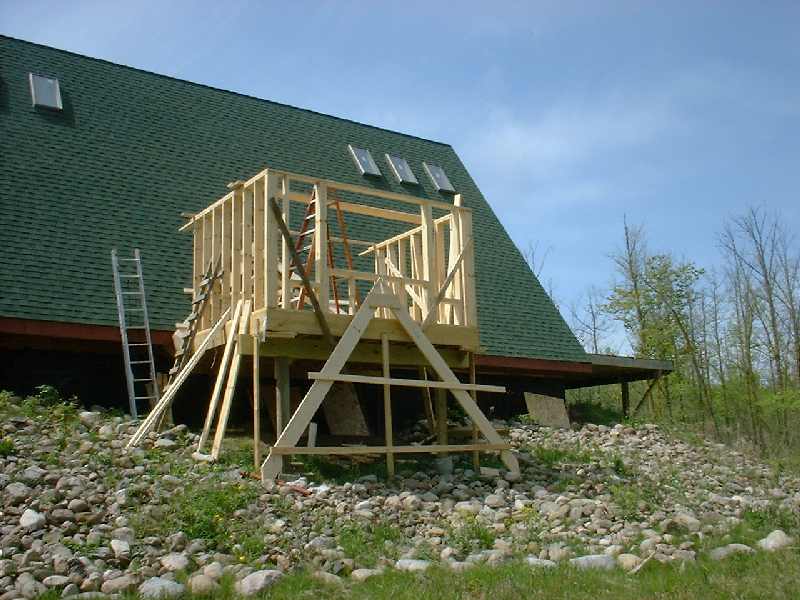

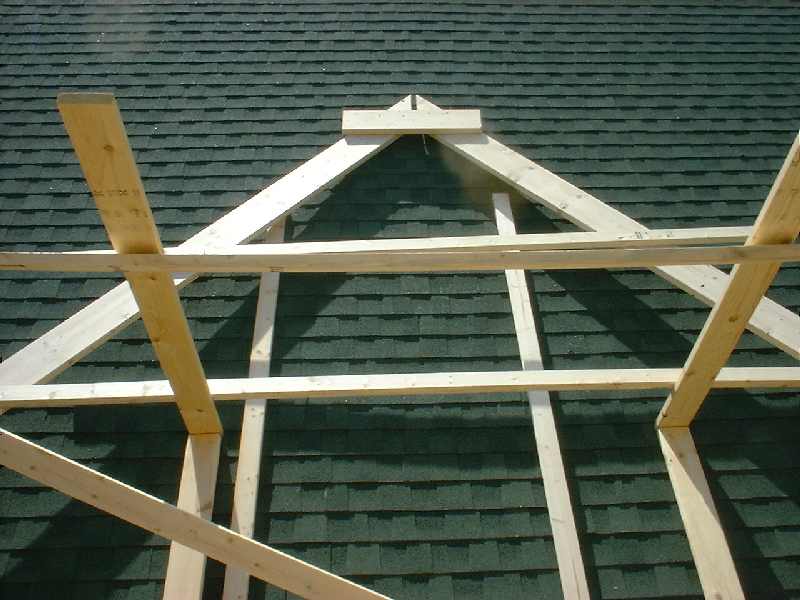

Summer and Fall 2010:  Pic 1 shows the studwalls being finished up, including rough openings for windows that will overlook the forest in back of my house (more on the windows later).  Pics 2 & 3 show the first two trusses in place to go up.  Pics 4 & 5 show some of the methods I use to manage doing this stuff by myself...which I'm glad no one has to watch.

Cost:  For roofing truss lumber, shingles and wall sheeting:  maybe $650.00, tops.  The reason for the low cost is that I used scrap lumber for most of the wall sheeting, and picked up about 10 bundles of shingles on Craigslist for about 1/3 retail.

Click for larger view

Click for larger view

Click for larger view

Click for larger view

Click for larger view

Click for larger view

Click for larger view

Click for larger view

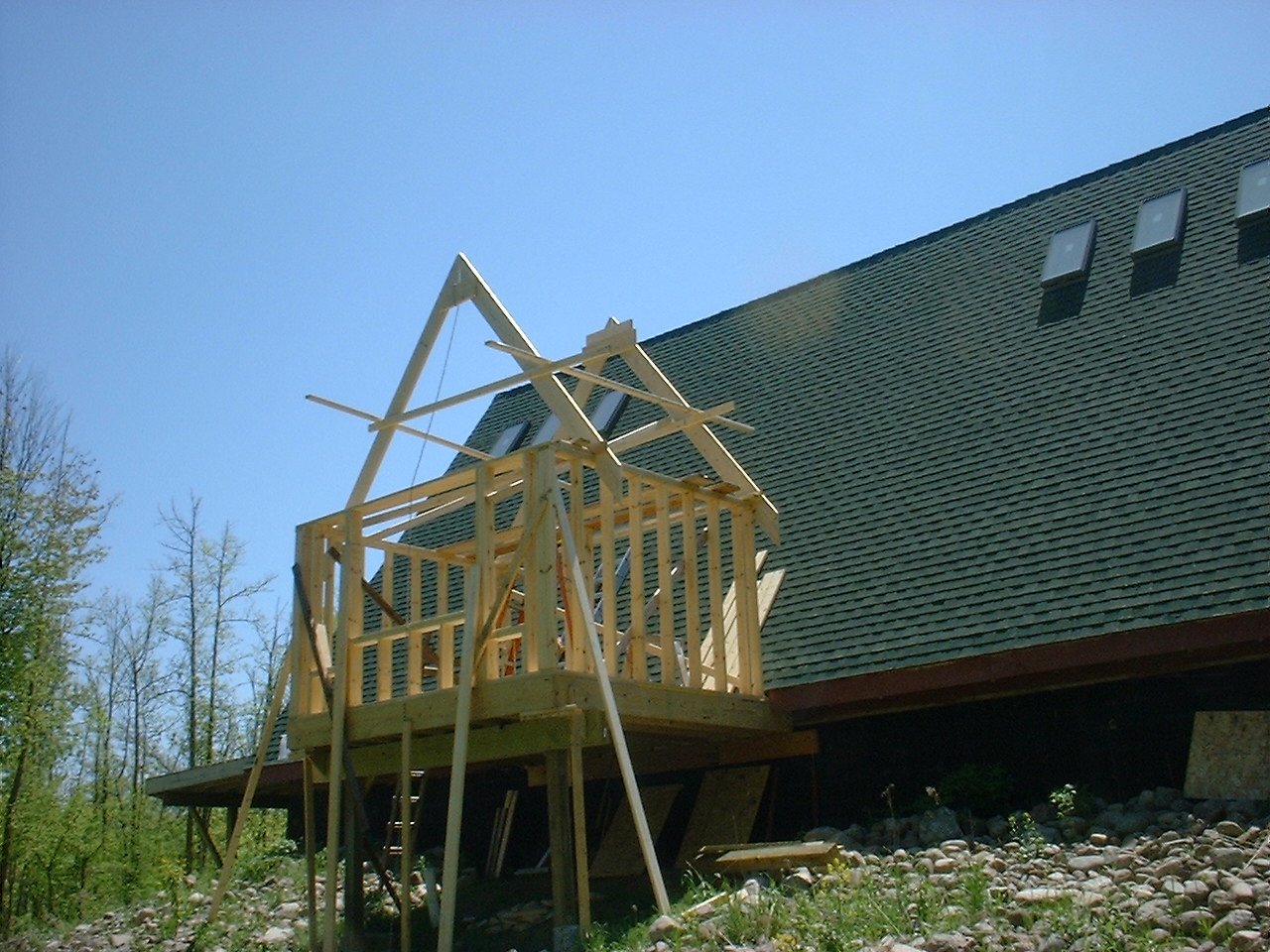

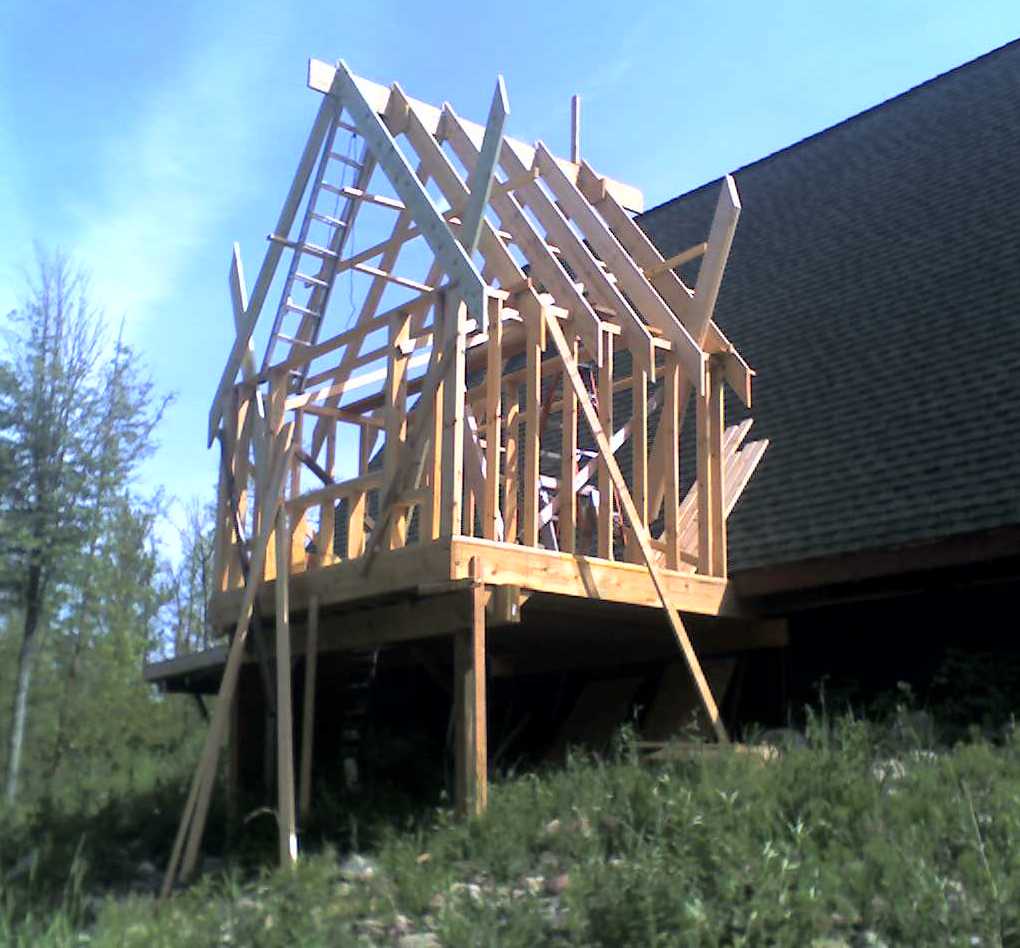

Pics 6 & 7 show the trusses in place and Pic 8 shows the ridge beam mounted and the rest of the rafters installed.
